OVERVIEW

OVERVIEW

Cam-Safe® is a complete grounding connection system comprising a unique and intelligent installation tool and studs and nuts in sizes M6, M8 and M10 diameters. Cam-Safe is a complete system providing secure connections in safety critical applications such as rail, wind and agriculture.

The Cam-Safe installation tool offers four different tool configurations to adapt best to any work environment:

1. Installation data is generated and stored for every single installation depending on how the installation tool has been configured.

2. For advanced quality management, by scanning the barcode with the installation tool, this ensures the right installation parameters for each single installation.

3. The Cam-Safe® system provides two different software options to control the installation process

4. Can integrate with ERP systems via Wi-Fi.

Download Brochure

A COMPLETE GROUNDING CONNECTION SYSTEM

  • INSTALLATION TOOLING

    INSTALLATION TOOLING

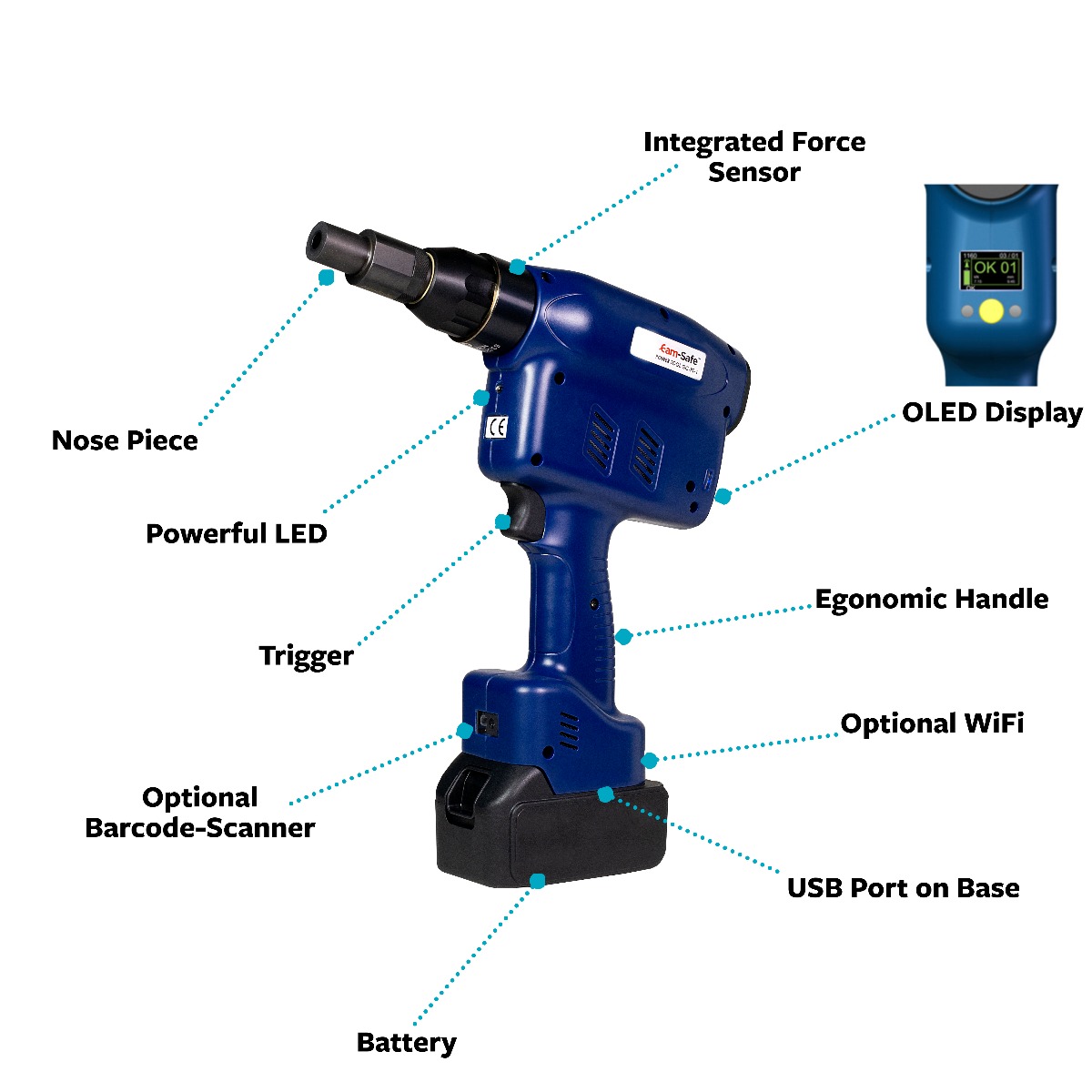

    The intelligent battery powered Camloc® Cam-Safe® Grounding Connection Installation Tool - Your powered tool for a safe installation process!

    The integrated barcode scanner ensures the correct installation settings whilst the OLED display provides OK / not-OK feedback.

    Quality documentation is produced for each installation.

  • GROUNDING CONNECTION STUD AND NUT

    GROUNDING CONNECTION STUD AND NUT

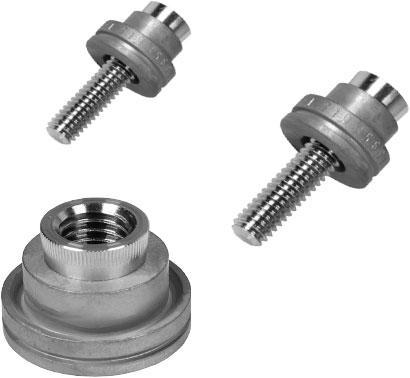

    The Cam-Safe® Grounding Connection comprises of a tension stud, nut and a contact-ring and are available in a range of sizes to suit numerous material thicknesses, offering superior performance across the board.

  • KNOW-HOW

    KNOW-HOW

    Cam-Safe® Grounding connection has many quality and test standards as well as advantages compared to alternative joining methods.

    Quality and Test Standards:

    Cam-Safe® Grounding Connection vs. Alternatives:

      Camloc Traditional Connection Welding
    Health & Safety / Ergonomics good average poor
    INSTALLATION TIME good average poor
    PREPARATION TIME good good average
    Reliability good good average
    Intelligent Tooling good average poor
    Quality documentation good poor poor
    Operator skill requirements good average poor
    Removal/repairs solution good poor poor
    Paint protection covers good poor poor
  • SUPPORTING ELEMENTS

    SUPPORTING ELEMENTS

    The Cam-Safe® Grounding Connection System has a range of supporting elements including a drill, gauge and tool balancer.

    Drill:

    If manual hole preparation is required, it is recommended to use specially developed drills to achieve good quality results with the required hole definition in Aluminum, Steel or Corrosion Resistant Steels. Depending on the material specification and material thickness, it is recommended to pre-drill an index hole.

    Limit Plug Gauge:

    With the Camloc Cam-Safe limit plug gauge you can easily check the hole preparations according to the respective product specifications.

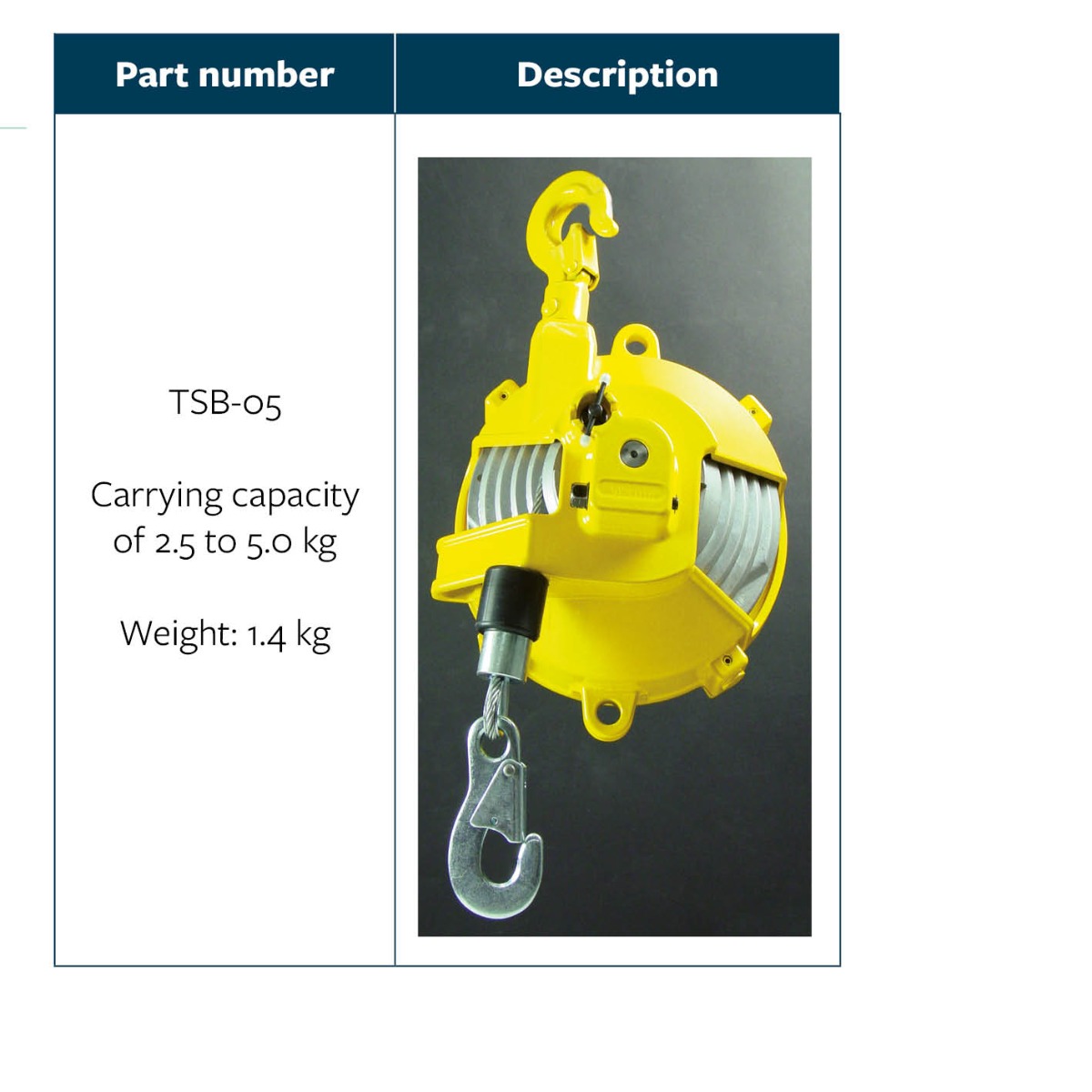

    Tool Balancer:

    • Tools can be hung up effortlessly
    • Precise work
    • Protects tools against damage and soiling
    • Allows rational work
    • Carrying capacity of 0.5 to 70 kg*
    • Cable pull out 1,300 mm
    * For special variants, please contact us.



DOWNLOAD CATALOGUE

SYSTEM FEATURES & BENEFITS

  • INTELLIGENT TOOLING
    VISUAL INSTALLATION CONFIRMATION

    VISUAL INSTALLATION CONFIRMATION

    INTELLIGENT TOOLING

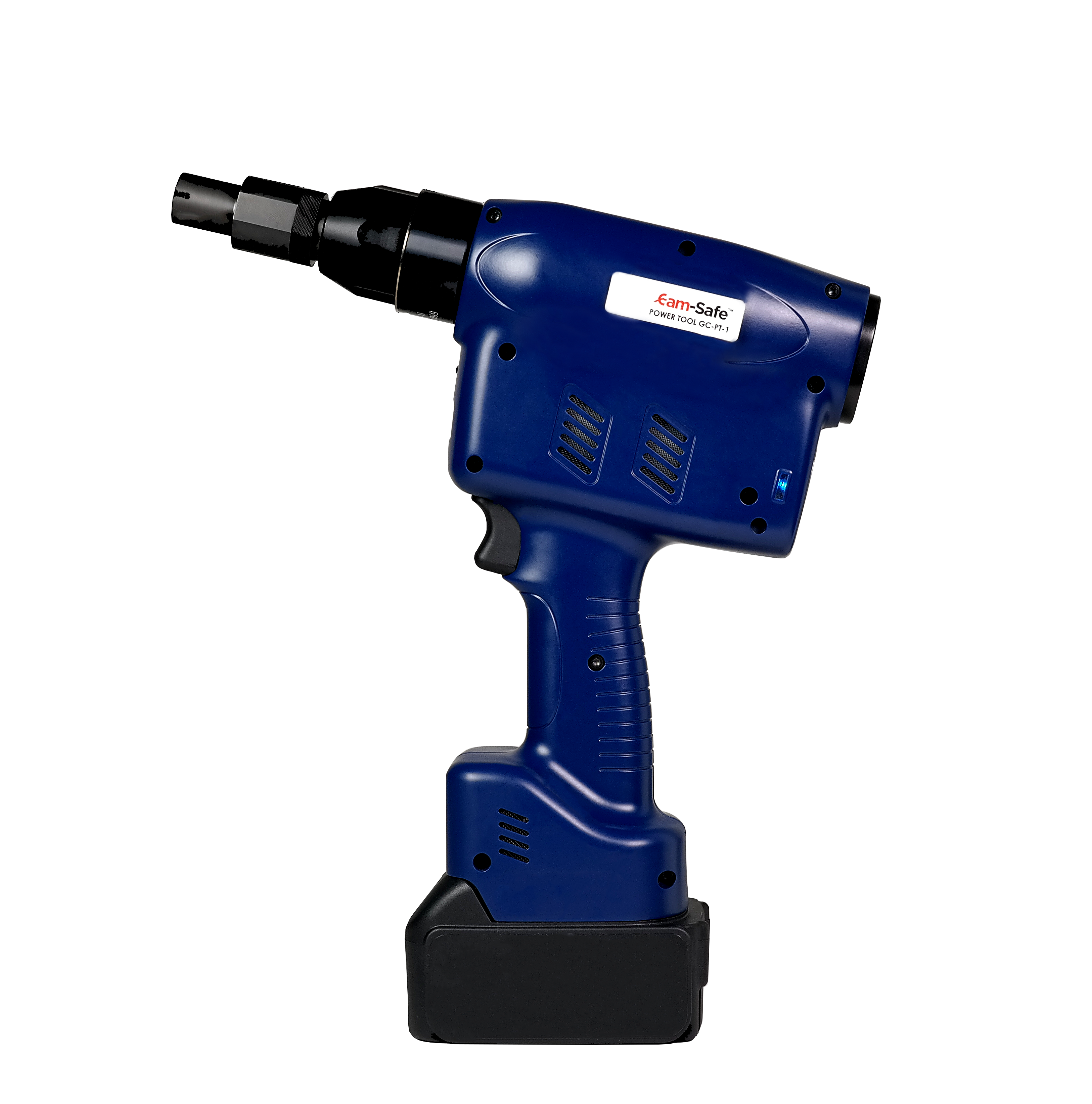

    The Camloc Cam-Safe® Grounding Connection Installation Tool is equipped with an easy to use, superior OLED display. The display provides a visual confirmation of process steps including barcode reader, automatic product recognition and verification of correct installations.

  • INSTALLATION PROCESS
    QUICK AND ERGONOMIC INSTALLATION

    QUICK AND ERGONOMIC INSTALLATION

    INSTALLATION PROCESS

    The Installation Tool has been especially adapted to install Grounding Studs and Nuts quickly and effectively. It is a very simple process with no special skills required.

    Installation Process:

    Step One:     Screw the Camloc Cam-Safe Grounding Connector into the nose piece of the tool a few turns by hand.

    Step Two: Hold the Camloc Cam-Safe Grounding Connector by hand and press the starter button until the Connector sits at the nose piece without gap.

    Step Three: Insert the contact ring of the Camloc Cam-Safe Grounding Connector into the prepared hole and then press the starter button again.

    Step Four: Grounding Connector is installed and spindled out automatically.

  • GROUNDING CONNECTION
    UNIQUE CONTACT FEATURE

    UNIQUE CONTACT FEATURE

    GROUNDING CONNECTION

    The Camloc Cam-Safe® Grounding Connection is available in a range of sizes to suit numerous material thicknesses, offering superior performance across the board.

    It's unique contact feature enables superior performance.



  • REPAIR SOLUTION
    OPTIMAL JOINT INTEGRITY

    OPTIMAL JOINT INTEGRITY

    REPAIR SOLUTION

    As part of the Camloc® Cam-Safe® Grounding Connection System, Camloc® offers a unique and effective repair
    solution to ensure that every Camloc® Cam-Safe® Grounding Connection reaches optimal joint integrity at production
    and at any subsequent point of repair / maintenance.



    The repair solution can be used in situations when a) the installation is not implemented correctly (confirmed
    by visual confirmation or not-OK signal) or b) the fastener needs to be removed for repair work / maintenance
    purposes.

    Repair Process:


    Step One:

    StepTwo:

    Step Three:


    Step Four:

  • INSTALLATION MANAGEMENT
    CONTROL & ANALYSIS

    CONTROL & ANALYSIS

    INSTALLATION MANAGEMENT

    The intelligent battery powered Camloc® Cam-Safe® Grounding Connection Installation Tool has been specially adapted to enable advanced system process control features:

    • Integrated barcode scanner
    • USB interface
    • Tool management software
    • Force monitoring
    • 99 program memory
    • Save up to 150,000 installation records
    • OLED screen for visual control
    • OK / not-OK display and evaluation
    • Operator information

    The integrated barcode scanner ensures the correct installation settings whilst the OLED display provides OK / not-OK feedback.

    Quality documentation is produced for each installation.






DOWNLOAD BROCHURE

INSTALLATION PROCESS

CAM-SAFE® GROUNDING CONNECTION VS ALTERNATIVES

The Cam-Safe® Grounding Connection system has been designed to be a superior alternative to current / traditional electrical grounding fastening systems, focusing especially on…

  • Conforming to specified electrical connection with required ampacity
  • Improved installation efficiency
  • Advanced, fully-automated battery tooling solution
  • Full process traceability and quality documentation
  • Repair / maintenance solution
Enquire
  Cam-Safe® Traditional Connection Welding
Health & Safety / Ergonomics good average poor
INSTALLATION TIME good average poor
PREPARATION TIME good good average
Reliability good good average
Intelligent Tooling good average poor
Quality documentation good poor poor
Operator skill requirements good average poor
Removal/repairs solution good poor poor
Paint protection covers good poor poor
Good/yes Average/minor Poor/no

Please download the brochure for full comparison table

Download Brochure
