Camloc 3352PT Pneumatic Installation Tooling Reset selection

  • The hydro-pneumatic Power Tool is designed to install metric KEENSERTS inserts from sizes M5 to M24, depending on the tool you select
  • Due to the force control of the tools, individual adjustment is possible for the KEENSERTS inserts sizes or surrounding materials is possible.
  • The one-button operation makes it easy to learn how to use the tools. The KEENSERTS inserts can be installed quickly and reliable.
  • The hydro-pneumatic system is low maintenance, ergonomic and lightweight

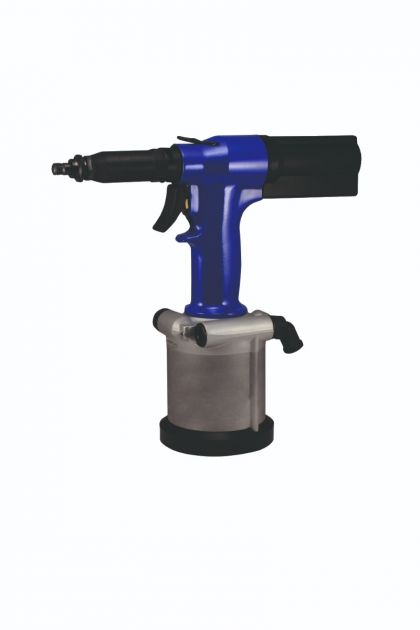

main product photo
Close

Get in Touch

Our team of experts will be glad to answer your questions.

Tech Specs

Please select a product from the options above.

Supplier Part Numbers

  • RECOIL®
  • HELICOIL® USA
  • (KATO) COILTHREAD®
  • ARMSTRONG
  • Powercoil
  • SUTTON
  • PERMATHREAD
  • BOLLHOFF

Standards

  • STANDARD PART NUMBER
  • GERMAN AEROSPACE STD LN9039 - LN9499
  • GENERAL ELECTRIC (GE)
  • DIN8140
  • BS7751 - BS7752

Tech Specs

  • Thread Type
  • Insert Type
  • Insert Style
  • Thread Size
  • Insert Length
  • Nominal Length
  • Bag Qty
  • Manual Installation Tool
  • Installation Mandrel
  • Prewinder
  • Pneumatic Air Prewinder (FEA)
  • Manual Tang Break Tool - (M) Magnetic
  • Spring Tang Break Tool
  • Pneumatic Tang Break Tool
  • Extraction Tool
  • STI Gauge (Screw Thread Insert)
  • Taper Tap
  • Intermediate Tap
  • Bottoming Tap
  • Pilot Nose Tap
  • Spiral Point Tap
  • Spiral Flute Tap
  • Pneumatic Driver
  • Electric Driver
  • Battery Driver
  • Suggested Drill Size (mm)
  • Suggested Drill Size (in)

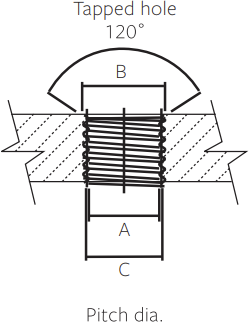

  • A Minor Min (Tapped Hole Dimension)
  • A Minor Max (Tapped Hole Dimension)
  • B Major Diameter (Tapped Hole Dimension)

Camloc 3352PT Pneumatic Installation Tooling Overview

KEENSERTS solid thread inserts can now be easily installed with this pneumatic installation tool. Select between 3352PTC-1 for KEENSERTS between metric sizes M5-M12, or 3352PTC-2 for KEENSERTS between metric sizes M5 - M24.

Pneudralic tooling is used to install either Keysert or KEENSERTS in sizes from M5-M24 or #10-1” using a specific nosepiece for each size. Nosepieces are a modular 3-piece design with each component available as an individual part.

Key Benefits

  • Quick, consistent and reliable installation

  • Installs a wide range of Keenserts®

  • Low maintenance, ergonomic and lightweight

Tech Specs

Tool

3352PT1

3352PT2

Air working pressure

6 bar

6 bar

Min. – Max. air pressure

5 - 7 bar

5 - 7 bar

Air consumption per cycle at 6 bar

5 Liter / 1.3 gallons

5 Liter / 1.3 gallons

Max. stroke

6,5 mm / 0.26 inch

8 mm / 0.31 inch

Max. force

19.000 N / 4,300 lbf

19.000 N / 4,300 lbf

Weight (without Nosepieces)

1,800 Kg / 4 pounds

2,200 Kg / 4,85 pounds

Vibrations

< 2,5 m/s ² / 8.2 ft/s²

< 2,5 m/s ² / 8.2 ft/s²

Noise Level

76 dB (A)

76 dB (A)
Please choose your options above to view Technical Specifications.

Downloads

Camloc 3352PT Pneumatic Installation Tooling System
